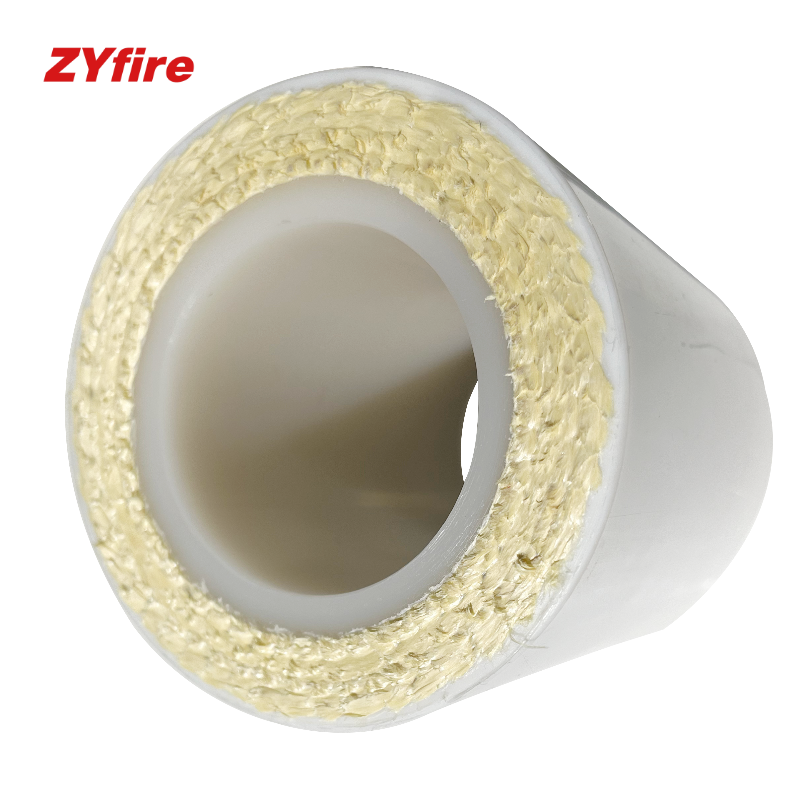

Aramid Fiber Tape-Reinforced RTP
Liner Layer: PE100, PE-RT II, PE-X, PA, PPS, PVDF, etc.
Reinforcement Layer: Aramid fiber tape.
Outer Protective Layer: White UV-stabilized or other colored HDPE/PE-RT II, etc.
Details
Product Advantage
Liner Layer: PE100, PE-RT II, PE-X, PA, PPS, PVDF, etc.
Reinforcement Layer: Aramid fiber tape.
Outer Protective Layer: White UV-stabilized or other colored HDPE/PE-RT II, etc.
Technical Parameters
| Aramid Fiber Tape-Reinforced RTP | ||||||||||
| Nominal Diameter | Inner Diameter (ID) | Nominal Pressure | Outer Diameter (OD) | Weight per Meter | Reel Specification | Single Length | Reel Weight | Total Weight (with Reel) | Minimum Bending Radius | |
| inch | mm | psi | MPa | mm | kg/m | mm | m | kg | kg | mm |
| 2" | 50 | 3500 | 24 | 84.6 | 3.72 | 2500*2000 | 750 | 1200 | 3991 | 1250 |
| 50 | 3000 | 20.7 | 84.6 | 3.72 | 2500*2000 | 750 | 1200 | 3991 | 1250 | |
| 50 | 2500 | 17.5 | 78 | 2.8 | 2500*2000 | 810 | 1200 | 3467 | 1250 | |
| 50 | 1500 | 10.5 | 76.8 | 2.62 | 2500*2000 | 950 | 1200 | 3687 | 1250 | |
| 50 | 1000 | 7 | 75.6 | 2.43 | 2500*2000 | 940 | 1200 | 3484 | 1250 | |
| 50 | 750 | 5.5 | 75.6 | 2.43 | 2500*2000 | 940 | 1200 | 3484 | 1250 | |
| 50 | 500 | 3.5 | 75.6 | 2.43 | 2500*2000 | 940 | 1200 | 3484 | 1250 | |
| 3" | 75 | 3000 | 20.7 | 113 | 5.79 | 3200*2800 | 830 | 1400 | 6207 | 2000 |
| 75 | 2500 | 17.5 | 110.6 | 5.27 | 3200*2800 | 830 | 1400 | 5776 | 2000 | |
| 75 | 1500 | 10.5 | 102.8 | 3.8 | 3200*2800 | 1100 | 1400 | 5584 | 2000 | |
| 75 | 1000 | 7 | 101.6 | 3.55 | 3200*2800 | 1100 | 1400 | 5302 | 2000 | |
| 75 | 750 | 5.5 | 101.6 | 3.55 | 3200*2800 | 1100 | 1400 | 5302 | 2000 | |
| 75 | 500 | 3.5 | 101.6 | 3.55 | 3200*2800 | 1100 | 1400 | 5302 | 2000 | |
| 4" | 100 | 2500 | 17.5 | 141 | 7.97 | 3750*2800 | 590 | 1700 | 6405 | 2500 |
| 100 | 1500 | 10.5 | 132 | 5.77 | 3750*2800 | 800 | 1700 | 6315 | 2500 | |
| 100 | 1000 | 7 | 130.8 | 5.46 | 3750*2800 | 800 | 1700 | 6070 | 2500 | |
| 100 | 750 | 5.5 | 129.6 | 5.13 | 3750*2800 | 840 | 1700 | 6011 | 2500 | |
| 100 | 500 | 3.5 | 129.6 | 5.13 | 3750*2800 | 840 | 1700 | 6011 | 2500 | |
| 5" | 125 | 1500 | 10.5 | 166.6 | 9.61 | 3750*2800 | 490 | 1700 | 6408 | 3200 |
| 125 | 1000 | 7 | 159 | 7.36 | 3750*2800 | 530 | 1700 | 5599 | 3200 | |
| 125 | 750 | 5.5 | 158.8 | 7.36 | 3750*2800 | 530 | 1700 | 5599 | 3200 | |
| 125 | 500 | 3.5 | 157.6 | 6.96 | 3750*2800 | 530 | 1700 | 5387 | 3200 | |
| 6" | 150 | 1500 | 10.5 | 193.6 | 11.84 | 3750*2800 | 310 | 1700 | 5370 | 3800 |
| 150 | 1000 | 7 | 187 | 9.65 | 3750*2800 | 310 | 1700 | 4691 | 3800 | |
| 150 | 750 | 5.5 | 185.8 | 9.2 | 3750*2800 | 310 | 1700 | 4555 | 3800 | |
| 150 | 500 | 3.5 | 184.6 | 8.74 | 3750*2800 | 340 | 1700 | 4671 | 3800 | |
| 8" | 200 | 750 | 5.5 | 238 | 12.85 | 3900*2800 | 175 | 1900 | 4148 | 5000 |
| 200 | 500 | 3.5 | 236.8 | 12.29 | 3900*2800 | 175 | 1900 | 4050 | 5000 | |
Application Scope
Suitable for oil and gas fields, energy, mining, chemical industries, and other sectors, transporting media including multiphase fluids, gaseous hydrocarbons, liquid hydrocarbons, chemicals, non-potable water, slurry, fly ash, brine, and more.
Installation Methods: Buried below frost layer or surface-laid.
FAQ
Q: Are you a factory or trading company?
A: We are a professional RTP manufacturer.
Q: What can you supply?
A: We could provide perfect fluid transmission for the world.
Q: Can you produce goods with special specification?
A: Yes, we can.
Q: What is your MOQ?
A: Our MOQ varies with different products.
Q: Can you send us a sample to test before ordering?
A: We are honored to offer you samples.
