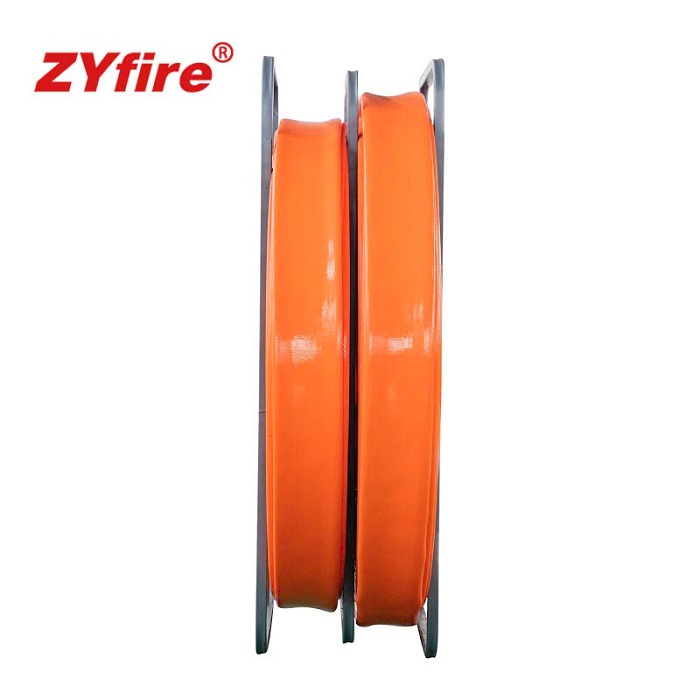

Drag Hose
ZYfire's DragPlus is our 3rd Generation Dragline Hose Designed and Manufactured for Excellent Performance and Service Life in Tough Operating Conditions.
- ZYfire
- China
- 30 days
- 1,000,000 mtr/month
Details
Drag Hose
Through-the-weave TPU Hose
Cover and Lining: TPU, Ribbed cover or smooth cover
Reinforcement Jacket: High tenacity synthetic jacket.
Application: Irrigation, Sludge discharge, Liquid fertilizers discharge, Supply or Drag hose.
Standard length: 30m (100ft), 61m (200ft), 91.5m (300ft), 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft).
Color: Blue, Green, Black, Red, Orange
ZYfire's DragPlus is our 3rd Generation Dragline Hose Designed and Manufactured for Excellent Performance and Service Life in Tough Operating Conditions.
* High Tensile Polyester Contnuous Weave Jacket
* Through-the-Weave Extruded Construction Encapsulating the Woven Jacket
* TPU Thermoplastic Resin for Highest Abrasion Resistance in a Wide Range of Field Conditons
* Optimized Design for Low/No Kink in Tight Turn Situations
* Tem Range: -40° F to 160° F
* 5 1/2", 6" and 7" Diameters are Available in 660' and 1320' Lengths
| ID | Tolerance | Wall Thickness | Service Pressure | Minimum Burst Pressure | Weight | Tensile Strength | ||||
| inch | mm | mm | inch | mm | bar/psi | bar/psi | kg/m | lbs/ft | kgs | lbs |
| 4" | 102 | +2.50 | 0.16 | 4.00 | 10/150 | 30/450 | 1.50 | 1.01 | 15500 | 34200 |
| 4" | 102 | +2.50 | 0.16 | 4.2 | 13/200 | 39/600 | 1.6 | 1.07 | 16500 | 36500 |
| 5" | 127 | +3.00 | 0.17 | 4.3 | 10/150 | 30/450 | 2 | 1.34 | 19500 | 43000 |
| 5-1/2" | 140 | +3.00 | 0.17 | 4.3 | 10/150 | 30/450 | 2.4 | 1.61 | 21000 | 47500 |
| 6" | 154 | +3.00 | 0.18 | 4.5 | 10/150 | 30/450 | 2.8 | 1.88 | 25000 | 55500 |
| 7" | 178 | +3.00 | 0.18 | 4.5 | 10/150 | 30/450 | 3.2 | 2.14 | 31000 | 68000 |
