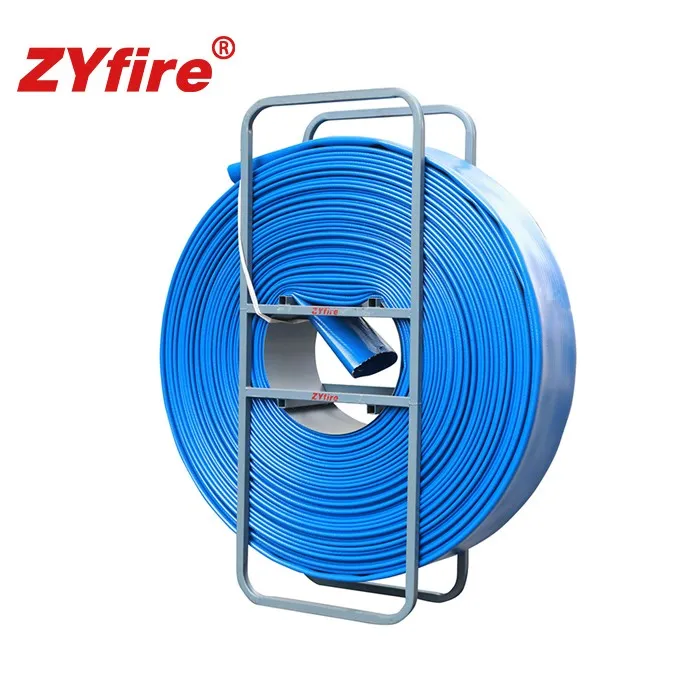

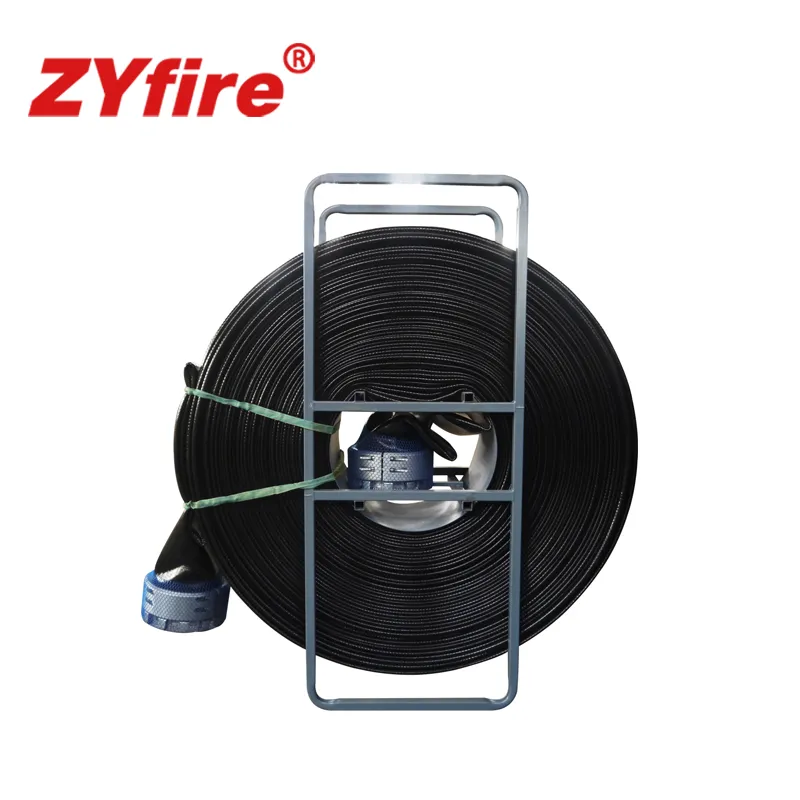

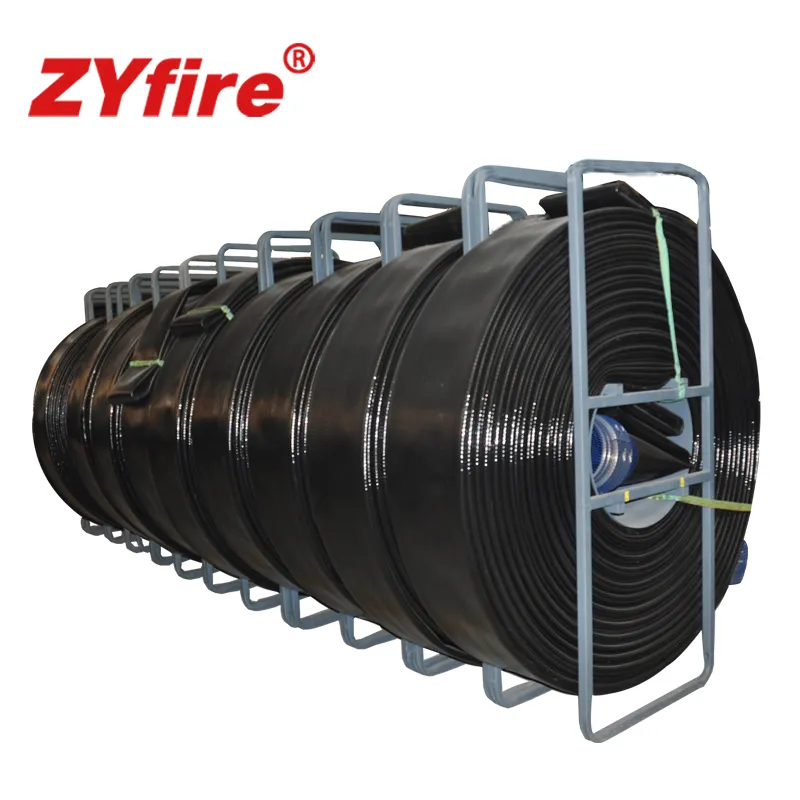

Mining dewatering TPU layflat hose

This hose is made from extruded thermoplastic polyether based polyurethane(TPU) with excellent wear & tear properties.
The reinforcement is made from circular woven filament polyester yarn.
The "extrusion through-the-weave" production method gives a very strong bonding
between cover and lining as well as firmly encapsulating the woven polyester.
The hose has high resistance against commonly used chemicals and has excellent
resistance to UV radiation, hydrolysis and fungus degradation.
The abrasion resistance of the TPU is one of the highest available, making the hose
ideal for use in the extremely abrasive environment in open pit mines.
The outer cover has been designed with extra thickness in order to add wear & tear
material. This extends the useful lifespan of the hose.
Extra abrasion resistance for rugged terrain and extreme conditions Resistant to oil
and chemicals UV Stabilised
Abrasion:4000 DIN cycles
This hose can operate in a temperature range from -50 C deg to 80 C deg(-58 F deg to +176 F deg).

Mining dewatering hose PU Layflat hose

Cover and Lining: PU, Ribbed cover or smooth cover

Reinforcement Jacket: High-tenacity synthetic jacket

Color: Blue, Green, Black, Red, Green

Application: Irrigation, Pumping of sludge and liquid fertilizers, supply or drag hose

Araiable lenghth: 30m (100ft), 61m(200ft), 91.5m (300ft), 100m (330ft) 200m (660ft),300m(990ft),400m(1320ft) hose can be with glow line on special requerts

This hose is made from extruded thermoplastic polyether based polyurethane(TPU) with excellent wear & tear properties.

The reinforcement is made from circular woven filament polyester yarn.

The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation.

The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines.

The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.

Extra abrasion resistance for rugged terrain and extreme conditions Resistant to oil and chemicals UV Stabilised

Abrasion: 4000 DIN cycles

IDToleranceWall ThicknessService
Pressure
Minimum
Burst Pressure
Weight
inchmmmminchmmpsipsilbs/ftkg/m
2"5151.0-53.00.0711.802507500.280.42
2"5151.0-53.00.1383.5041012300.470.70
3"7676.0-78.00.1183.002507500.600.90
3"7676.0-78.00.1263.2041012300.701.05
4"102102-104.50.1102.802006000.721.08
4"102102-104.50.1383.502507500.871.30
4"102102-104.50.1423.603009000.941.40
4"102102-104.50.1894.8061018301.271.90
5"125125-127.50.1423.601504501.211.80
6"152154-1570.1263.201504501.271.90
6"152154-1570.1493.802507501.412.10
6"152154-1570.1654.203009001.682.50
6"152154-1570.2285.8041012302.283.40
6"152154-1570.2165.5061018302.143.20
8"204204-2070.1493.802006001.942.90
8"204204-2070.1574.002507502.283.40
8"204204-2070.1654.203009002.353.50
8"204204-2070.1654.2041012302.684.00
10"254256-2590.1654.202006002.684.00
10"254256-2590.1774.502507503.024.50
10"254256-2590.1975.003009003.695.50
12"306306-3110.1654.201504502.814.20
12"306306-3110.1975.002006003.485.20
14"356356-3600.1894.801504504.366.50
16"406406-4100.1975.001003004.566.80
16"406406-4100.2125.401504505.237.80

*All above technical parameters are for reference, details please confirm with ZYfire.
